Guard Column Hardware for Multiple Phases

Protect Your HPLC Columns and Extend System Uptime

Guard column hardware plays a critical role in protecting analytical and preparative HPLC columns during routine use. Properly implemented guard columns help extend column lifetime, preserve chromatographic performance, and keep HPLC systems in service longer by preventing contamination from reaching the main column.

Cogent guard column systems are designed to support multiple stationary phases, allowing seamless integration with your existing HPLC methods.

Why Use Guard Columns in HPLC?

Guard columns act as the first line of defense against contaminants entering the analytical column. They are designed to trap:

• Undissolved or particulate matter

• Strongly retained chemical contaminants

• Matrix components that could irreversibly adsorb

Without a guard column, these contaminants may permanently alter the surface chemistry of the analytical column, leading to changes in selectivity, peak shape, and retention time.

Match the Guard Phase to Your Analytical Column

For effective column protection, the stationary phase of the guard column should always match the phase of the analytical or preparative column. When properly matched:

• The effective column length increases only slightly

• Chromatographic selectivity remains unchanged

• Method integrity is preserved

Using a different stationary phase may unintentionally retain analytes of interest. While this technique can be useful in specific applications, it is not considered true column protection and may compromise analytical results.

When to Replace a Guard Column

Guard columns are consumable components and should be replaced when performance begins to decline. Common indicators include:

• Changes in peak shape

• Shifts in retention time

• Increased system backpressure

Replacing the guard column at the appropriate time helps restore performance and prevents irreversible damage to the analytical column.

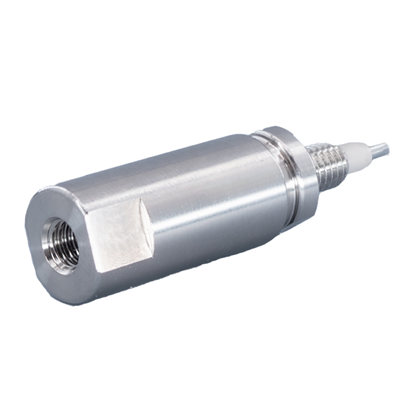

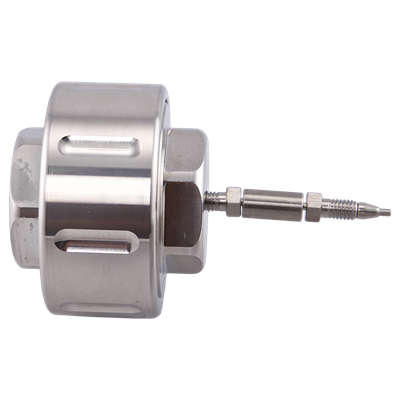

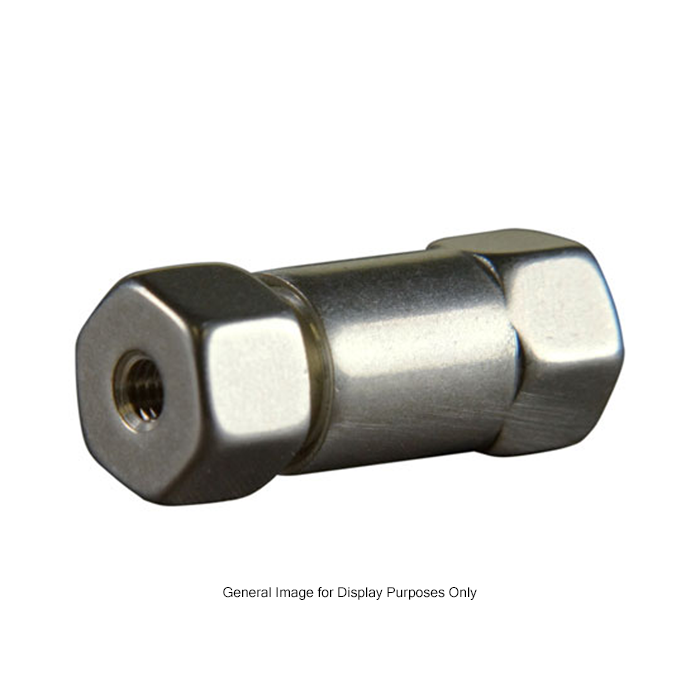

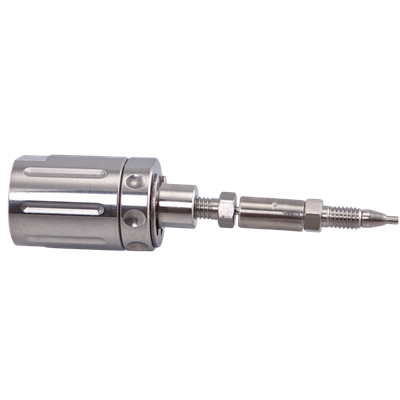

Cogent Guard Column Hardware System

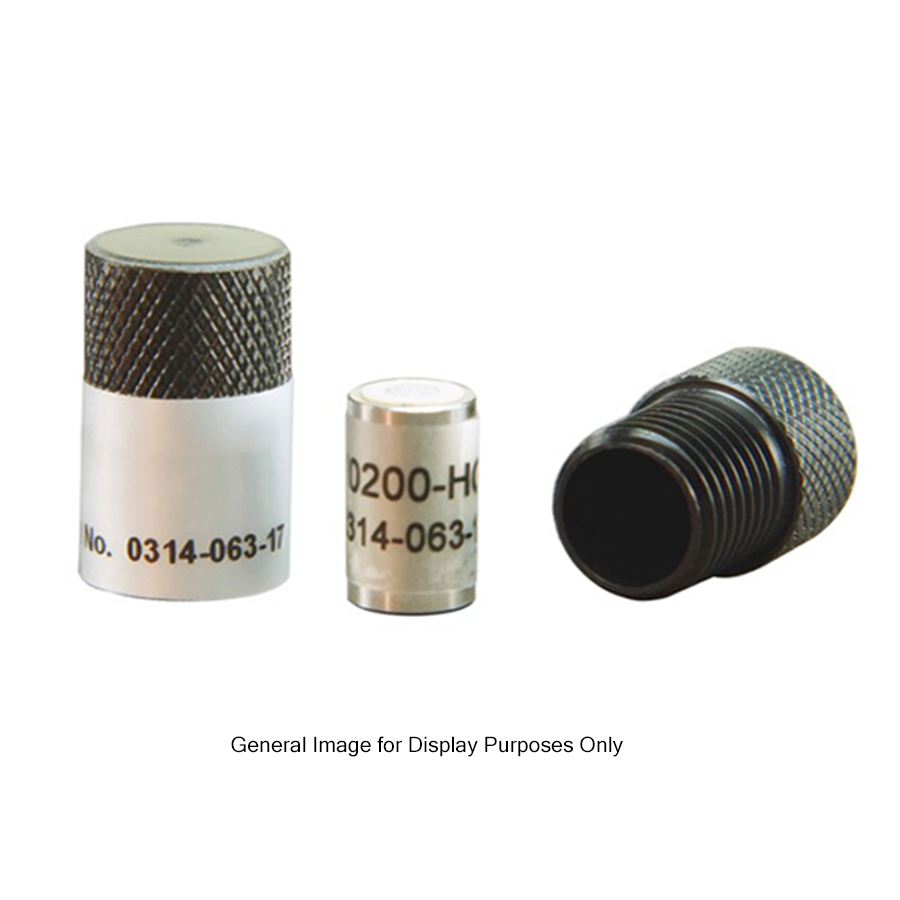

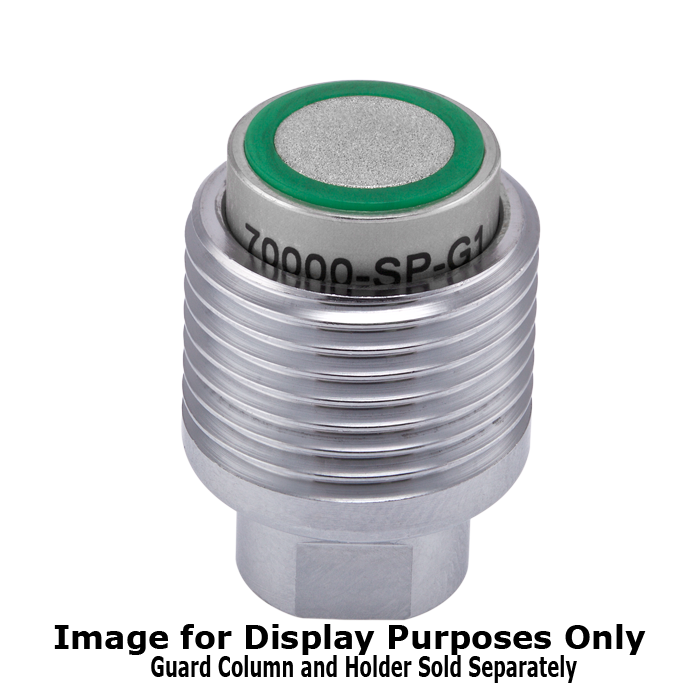

This page lists the holders and hardware components for Cogent guard column systems. The guard cartridges themselves are listed separately, organized by their corresponding stationary phases to ensure proper phase matching with analytical and preparative columns.

This modular approach allows laboratories to:

• Standardize guard hardware across methods

• Select the correct guard phase for each column

• Replace only the cartridge when needed

Key Features and Benefits

• Protects analytical and preparative HPLC columns

• Helps maintain consistent retention and peak shape

• Extends column lifetime and system uptime

• Compatible with multiple stationary phases

• Modular design with replaceable guard cartridges

• Supports routine, regulated, and high‑throughput workflows

Recommended Best Practices

• Always match guard column phase to the analytical column

• Monitor peak shape and retention regularly

• Replace guard cartridges before analytical performance degrades

• Use guard columns in combination with column filters for optimal protection

Column Protection Recommendation

Important: MICROSOLV technical support strongly recommends using the Cogent Column Filter, which is included with each column, whenever possible. Column filters provide additional protection by removing particulates upstream, further extending column and guard life.

👉 Learn more about the Cogent Column Filter for HPLC column protection
